GFC14x22 Flexible Jaw Shaft Coupling

GFC14x22 Flexible Jaw Shaft Coupling

اسم العلامة التجارية:	Tianniu
رقم الموديل:	GFC
موك:	1 قطعة
السعر:	negotiable
موعد التسليم:	3-5 أيام عمل
شروط الدفع:	T/T ، Western Union ، Moneygram ، L/C ، D/A ، D/P

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

ISO 9001

نموذج:

اقتران الفك GFC

ضمان:

12 شهرا

حجم التجويف:

3-55 ملم

طول:

14-95 ملم

توك:

5-250

تفاصيل التغليف:

كرتون عن طريق الشحن البحري بالطائرة

القدرة على العرض:

10000 شهريا

إبراز:

GFC14x22 flexible shaft coupling

flexible jaw coupling with warranty

plum shaft coupling GFC14x22

وصف المنتج

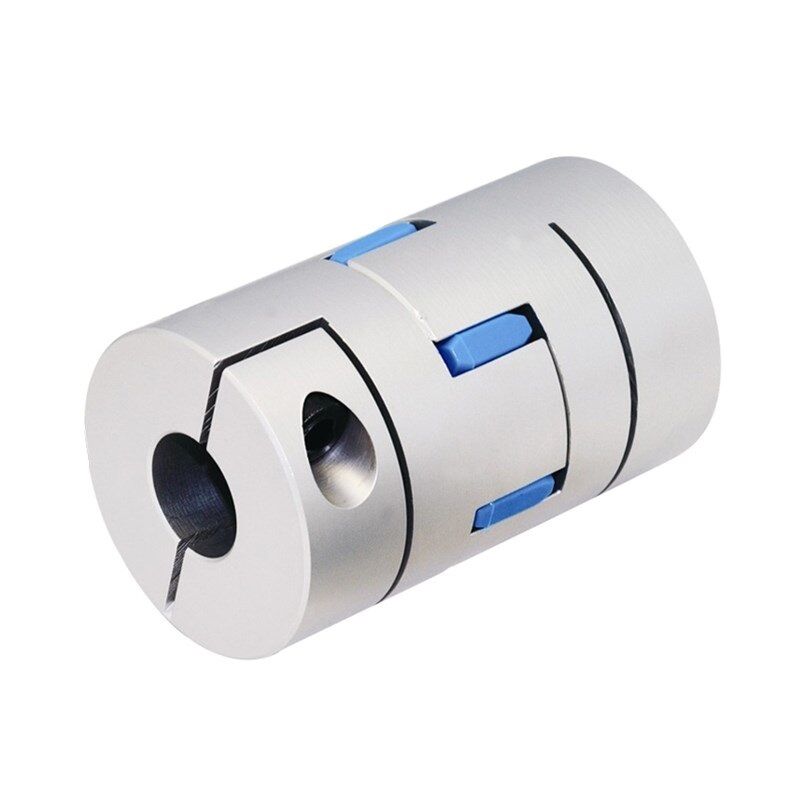

GFC Shaft Coupling Flexible Coupling

GFC14x22 Flexible Jaw Shaft Coupling 0

Products Features

>High torque rigidity, can accurately control the rotation of the shaft, can carry out high-precision control
>Designed for servo and stepping motor
>No gap between the shaft and sleeve connection, general for positive and negative rotation
>Low inertia, suitable for high speed operation
>The diaphragm is made of spring steel with excellent fatigue resistance

Products Parameters

model parameter	common bore diameter d1,d2	ΦD	L	LF	LP	F	M	tightening screw torque (N.M)
GFC-14X22	3,4,5,6,6.35	14	22	14.3	6.6	5.0	M2.5	1.0
GFC-20x25	3,4,5,6,6.35,7,8,9,9.525,10	20	25	16.7	8.6	5.9	M3	1.5
GFC-20X30	3,4,5,6,6.35,7,8,9,9.525,10	20	30	19.25	8.6	5.9	M3	1.5
GFC-25X30	4,5,6,6.35,7,8,9,9.525,10,11,12	25	30	20.82	11.6	8.5	M4	2.5
GFC-25X34	4,5,6,6.35,7,8,9,9.525,10,11,12	25	34	22.82	11.6	8.5	M4	2.5
GFC-30x35	5,6,6.35,7,8,9,10,11,12,12.7,14,15,16	30	35	23	11.5	10	M4	2.5
GFC-30X40	5,6,6.35,7,8,9,10,11,12,12.7,14,15,16	30	40	25	11.5	10	M4	2.5
GFC-40X50	6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24	40	50	32.1	14.5	14	M5	7
GFC-40X55	6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24	40	55	34.5	14.5	14	M5	7
GFC-40X66	6,8,910,11,12,12.7,14,15,16,17,18,19,20,22,24	40	66	40	14.5	14	M5	7
GFC-55X49	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	49	32	16.1	13.5	M6	12
GFC-55X78	8,10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	78	46.4	16.1	19	M6	12
GFC-65X80	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40	65	80	48.5	17.3	14	M8	20
GFC-65X90	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40	65	90	53.5	17.3	22.5	M8	20
GFC-80X114	19,20,22,24,25,28,30,32,35,38,40,42,45	80	114	68	22.5	16	M8	20
GFC-95X126	19,20,22,24,25,28,30,32,35,38,40,42,45,50,55	95	126	74.5	24	18	M10	30

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	weight (g)
GFC-14X22	5.0	0.1	1	±02	10000	50	1.0x10-6	10
GFC-20X25	5.0	0.1	1	±02	10000	50	1.0x10-6	15
GFC-20X30	5.0	0.1	1	^02	10000	53	1.1x10-6	19
GFC-25X30	10	0.1	1		10000	90	5.2X10-6	33
GFC-25X34	10	0.1	1	£)2	10000	90	5.2x10-6	42
GFC-30X35	12.5	0.1	1	±02	10000	123	6.2x10-6	50
GFC-30x40	12.5	0.1	1	102	10000	123	6.2x10-6	60
GFC-40X50	17	0.1	1		8000	1100	3.8x10-5	115
GFC-40X55	17	0.1	1	±02	8000	1100	3.8x10-5	127
GFC-40X66	17	0.1	1		7000	1140	3.9x10-5	154
GFC-55X49	45	0.1	1	±02	6500	2350	1.6x10-3	241
GFC-55X78	45	0.1	1	102	6000	2500	1.6x10-3	341
GFC-65X80	108	0.1	1	±02	5500	4500	3.8x10-3	433
GFC-65X90	108	0.1	1	±02	5500	4800	3.8x10-3	583
GFC-80X114	145	0.1	1	£)2	4500	5000	1.8x10-3	1650
GFC-95X126	250	0.1	1	±02	4000	5000	2.0x10-3	1000
