تفاصيل المنتجات

Created with Pixso. المنزل Created with Pixso. منتجات Created with Pixso.
طريقة واحدة محامل
Created with Pixso. CSK Sprag Clutch Bearing 30mm ID 62mm OD P6 Precision

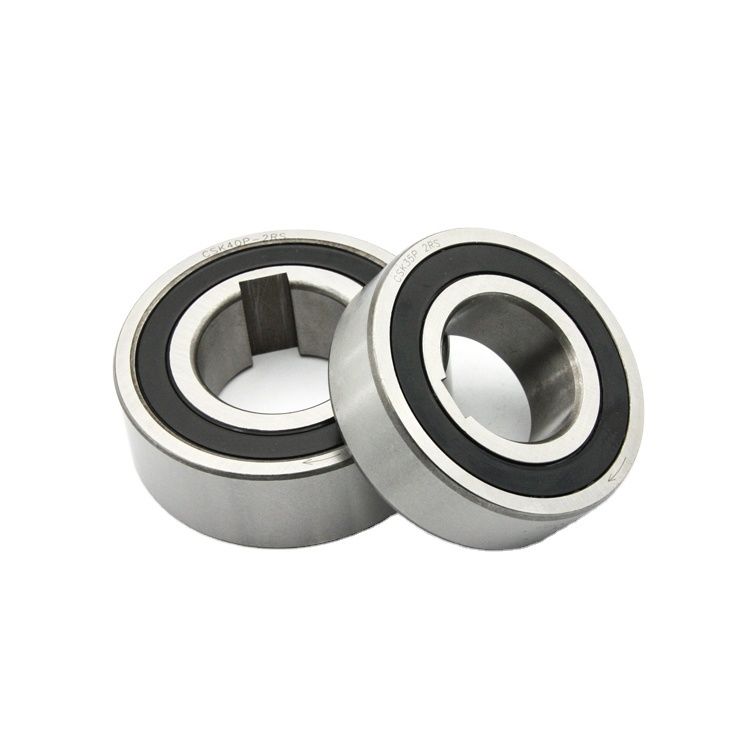

CSK Sprag Clutch Bearing 30mm ID 62mm OD P6 Precision

اسم العلامة التجارية: SUMA
رقم الموديل: CSK
موك: 10
Price: $1.70-2
معلومات مفصلة
مكان المنشأ:
جيانغسو ، الصين
تصنيف الدقة:
P6
نوع الأختام:
فتح ZZ 2RS
مادة:
GCR15
وزن:
0.21 كلغ
القطر الخارجي:
62mm
قطر داخلي:
30mm
تجاوز السرعة:
4200R/دقيقة
سماكة:
16mm
سعة عزم الدوران:
85 ميل بحري
الحمل الديناميكي:
11.7kn
حمولة ثابتة:
6.45kn
عزم الدوران السحب:
4.4ncm
سلسلة تحمل:
6206
نوع الطريق الرئيسي:
نوع سبراغ
Sprags formchromed:
نعم
إبراز:

30mm ID sprag clutch bearing

,

62mm OD one way bearing

,

P6 precision sprag clutch

وصف المنتج
One Way Sprag Clutch Bearing CSK20PP CSK 20PP CSK20 PP CSK series are sprag type one way freewheel bearings. CSK P has one keyway in the inner side. CSKPP has two keyways on both inner and outer side. CSK P 2RS has one keyway and seals to protect from water resistance, and it is 5mm wider than CSKP and CSKPP. Product Specifications Product name Sprag bearing Model CSK30PP2RS Material GCr15 Inner diameter 30mm Outer diameter 62mm Thickness 16mm Torque capacity 85Nm Weight 0
